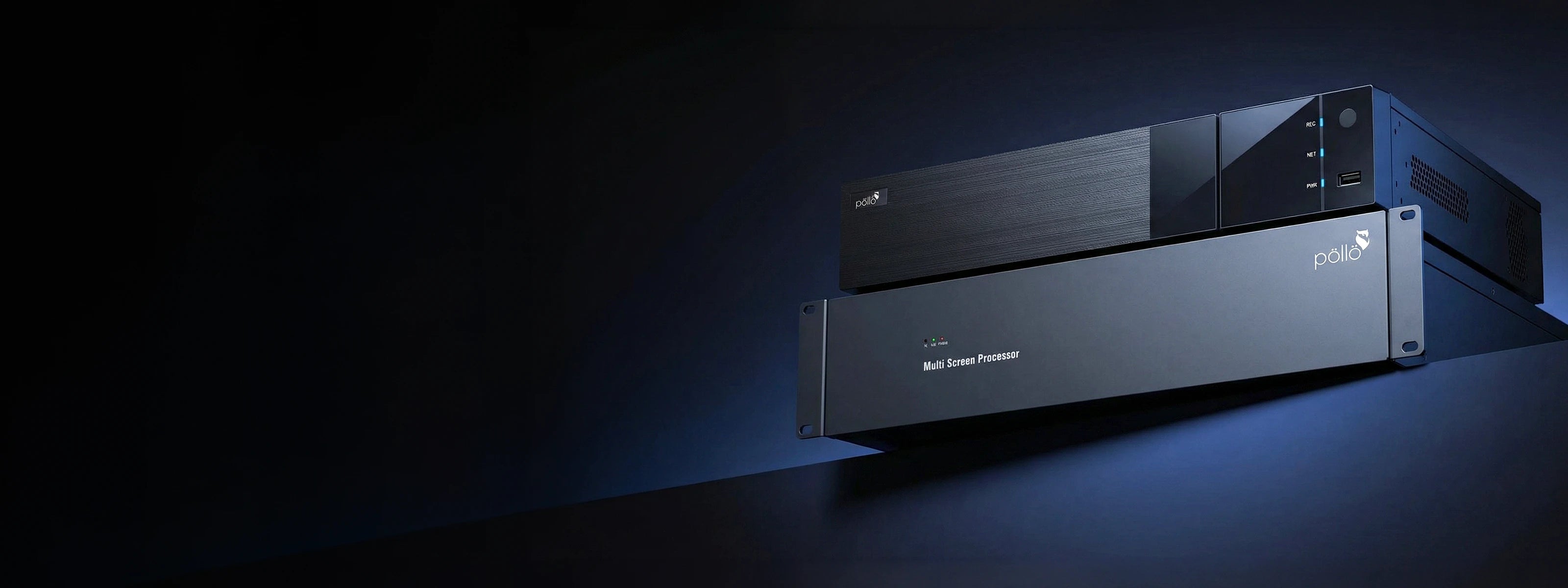

Video Wall Controller

Video Wall Controller

PLD-3000-2.5U

• 1×HDMI2.0 / DP1.2, 2×HDMI1.4, 4×HDMI1.3 inputs (switchable)
• 4×HDMI1.3 inputs (HDCP supported)
• 4×HDMI1.3 outputs (up to 8 window layers)
• Embedded audio input/output
• Max input resolution: 3840×2160 @ 60Hz
• Max output resolution: 1920×1080 @ 60Hz
• Custom output resolution: 2048×1920
• 1×RJ45 network port for web control
• 1×DB9 female RS232 port for central control
• 1×DB9 male RS232 port for third-party control
• 1×3.5mm headphone output
• LED status indicators
• Modular design for easy expansion
• Compatible with standard HDMI/DP interfaces
• Real-time monitoring and system integration

View Datasheet
How to Buy?

Total Situational Awareness

Turn complex data into actionable insights. Experience seamless integration and high-definition precision designed for modern command centers.

The Brain Behind Your Video Wall

Seamlessly manage high-density video streams with enterprise-grade decoders and multi-screen processors designed for the most demanding surveillance environments.

Built for the High-End Enterprise

rom massive video walls to mission-critical storage, we provide the end-to-end architecture needed to manage complex surveillance networks with absolute reliability and speed.

Interested in this product?

Connect with Us for Pricing & Availability!
