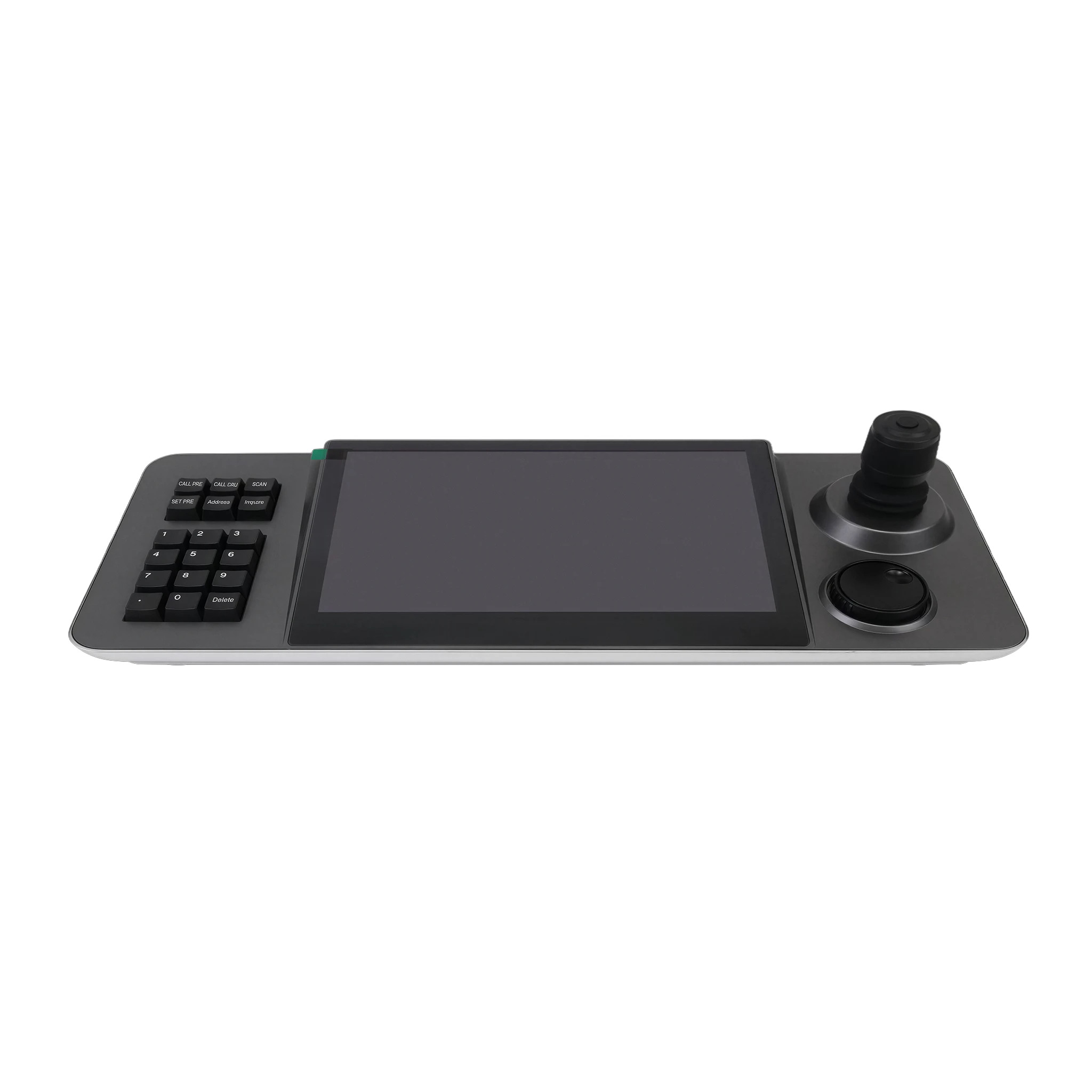

PTZ Controller Keyboard

PTZ Controller Keyboard

PLC-PTC-K12PM

• TFT LCD display with 320 × 240 resolution
• Intuitive operation via 4D joystick, knob, and buttons
• 1 × RJ45 10/100 Mbps adaptive Ethernet port
• Supports PTZ mode, platform mode, and serial port control mode
• Web client supported for software upgrade and network management
• Serial communication via RS422 ×1 and RS232 ×1
• Multiple baud rates supported from 1200 to 19200 bps
• DC 12V / 2A power input
• Supports PoE power supply (IEEE 802.3af)
• Low power consumption ≤ 5 W
• Operating temperature range: -10°C to 55°C
• Operating humidity: 20% to 80% non-condensing
• Storage temperature range: -10°C to 60°C
• Storage humidity up to 90% non-condensing
• Compact dimensions: 321 × 179.2 × 108.5 mm
• Approximate net weight: 1.63 kg

How to Buy?

Total Situational Awareness

Turn complex data into actionable insights. Experience seamless integration and high-definition precision designed for modern command centers.

Master Your Surveillance Network

Reduce operator fatigue and increase response times with ergonomic designs. These professional-grade keyboards are the ultimate tool for high-stakes monitoring environments.

Built for the High-End Enterprise

rom massive video walls to mission-critical storage, we provide the end-to-end architecture needed to manage complex surveillance networks with absolute reliability and speed.

Interested in this product?

Connect with Us for Pricing & Availability!
