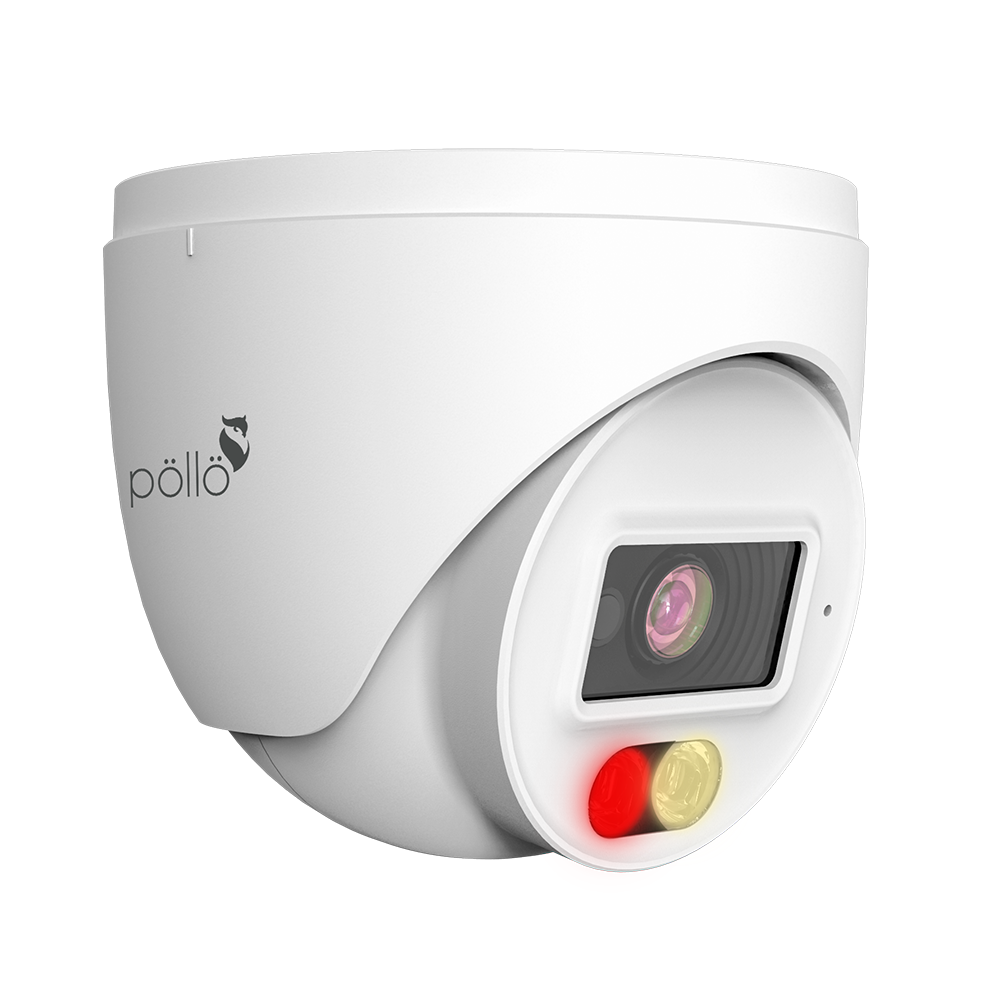

| Model |
PLC-432P-AU-DL3/PM |
| Image sensor |
1 / 3" CMOS |
| Image Size |
1920 × 1080 |
| Electronic Shutter |
1 s ~ 1 / 100000 s |
| Iris Type |
Fixed Iris |
| Min. Illumination |
0.0462 lux @F2.2, AGC ON; 0 lux (Illumination on) |
| Lens |
2.8mm@F2.2, Horizontal FoV: 93°; Vertical FoV:52°;Diagonal FoV:106° 3.6mm@F2.2, Horizontal FoV:74°;Vertical FoV:40°;Diagonal FoV:85° |
| Focus |
Fixed |
| Lens Mount |
M12 |
| Wide Dynamic Range |
Digital WDR |
| BLC |
Yes |
| HLC |
Yes |
| Defog |
Yes |
| Digital NR |
Yes |
| S/N Ratio |
≥50dB |
| Angle Adjustment |
Pan: 0°~360°; Tilt:0°~75°;Rotation: 0°~360° |
| Video Compression |
Main stream: H.265+ / H.265 / H.264 + / H.264 Sub stream: H.265+ / H.265 / H.264 + / H.264 |
| H.264 Compression Standard |
Main Profile@Leve4.1 High Tier |
| Resolution |
1080P (1920×1080), 720P(1280×720), D1, VGA(640×480), 640×360,480×240, CIF |
| Main Stream |
1080P/720P(60Hz: 1~30fps; 50Hz: 1~25fps) |
| Sub Stream |
D1/VGA/640× 360/480× 240/CIF (60Hz: 1~30fps; 50Hz: 1~25fps) |
| Bit Rate |
64 Kbps ~ 3 Mbps |
| Bit Rate Type |
VBR / CBR |
| Audio Compression |
G711A/U |
| Image Settings |
ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Image Mirror, Image Flip, NR, etc. adjustable through client software or web browser |
| ROI |
Each ROI to be configured separately |
| Network |
RJ45 |
| Video Output |
No |
| Audio |
1CH built-in MIC |
| Remote Monitoring |
Web browser /POLLO NVR/PVMS Plus/Pollo Live Plus Mobile App |
| Web Browser |
IE 11 (plug-in required)/Chrome 89.0+/Edge 89.0+/Firefox 87.0+/Safari 14.0+ |
| Online Connection |
Support simultaneous monitoring for up to 3 users; Support multi-stream real time transmission |
| Network Protocol |
UDP, IPv4, IPv6, DHCP, NTP, SNMP, RTSP, 802.1x, UPnP, SMTP, FTP, HTTP, HTTPS, QoS Interface Protocol ONVIF |
| Interface Protocol |
ONVIF |
| Storage |
Network remote storage |
| Motion Detection |
Yes |
| Smart Event |
Region intrusion detection, line crossing detection, video exception (scene change, video blur and abnormal color detection) |
| General Function |
Watermark, video mask, heartbeat |
| Security |
Video encryption, firmware encryption, configuration encryption, illegal login lock, IP address filtering, 802.1x authentication, basic and digest authentication for HTTP |
| PoE |
Yes, IEEE802.3af |
| Supplement Light Range |
IR range: 20 ~ 30 m; white light range:20 ~ 30 m |
| Ingress Protection |
IP67 |
| Power Supply |
PoE power supply |
| Power Consumption |
< 5.5W |
| Operating Environment |
- 20 °C ~ 55 °C (-4°F~131°F); Humidity: less than 95 % (non-condensing) |
| Storage Environment |
- 20 °C ~ 60°C (-4°F~140°F), Humidity: less than 95 % (non-condensing) |
| Dimensions (mm) |
Φ 94.6 × 82.8 |
| Weight (net) |
Approx. 0.27KG |
| Installation |
Ceiling mounting; Wall mounting |
| Certificate |
CE, FCC |
| Environmental Protection |
Complies with Directive EU RoHS, WEEE(2012/19/EU) , directive 94/62/EC and REACH(EC1907/2006) |
