| Product Name |

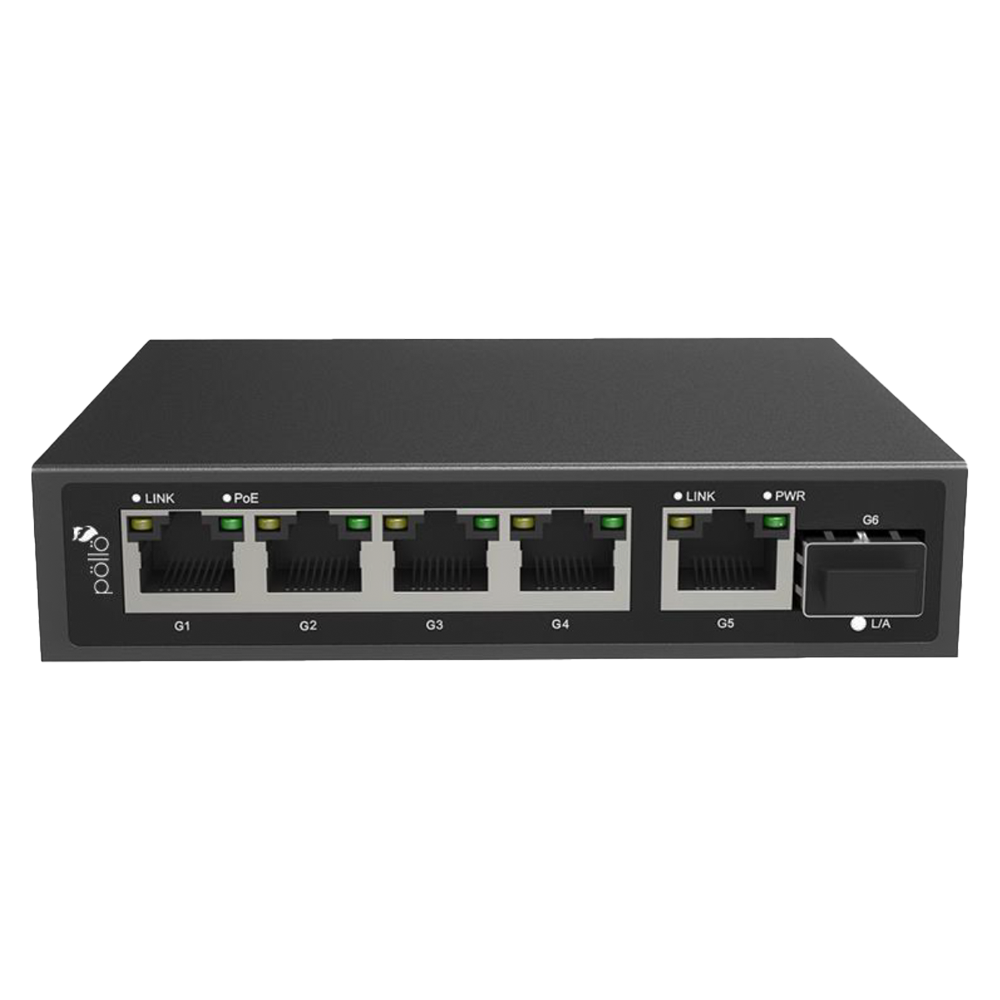

PLN-1104GB-SFP |
| Fixed Port |
4*10/100/1000Base-T PoE ports (Data/Power) 1*10/100/1000Base-T uplink RJ45 port (Data) 1*1000Base-X SFP fiber port slots (Data) |
| Ethernet Port |
Port 1-5 can support 10/100/1000Base-T auto-sensing, full/half duplex MDI/MDI-X |
| Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP (≤100 meter) 100BASE-TX: Cat5 or later UTP (≤100 meter) 1000BASE-T: Cat5e or later UTP (≤100 meter) |
| SFP Slot Port |
Gigabit SFP optical fiber port, default matching optical modules (optional order single-mode / multi-mode, single fiber / dual fiber optical module. LC) |
| Optical Cable |
Multi-mode: 850nm/0 ~ 550M, Single-mode: 1310nm/ 0 ~ 40KM, 1550nm/ 0 ~ 120KM. |
| Network Protocol |
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-X, IEEE802.3x |
| Forwarding Mode |
Store and Forward (Full Wire Speed) |
| Switching Capacity |
12Gbps |
| Forwarding Rate@64byte |
8.93Mpps |
| MAC |
2K |
| Buffer Memory |
2M |
| LED Indicator |
Power: PWR (green), network: Link(yellow), POE: PoE (green) |
| Reset Switch |
Yes, One-button factory reset |
| PoE Port |
Port 1 to 4 IEEE802.3af/at @ POE |
| Power Supply Pin |
Default 1/2 (+), 3/6 (-), optional 4/5 (+), 7/8 (-) |
| Max Power Per Port |
30W; IEEE802.3af/at |
| Total PWR / Input Voltage |
65W/(DC52V) |
| Power Consumption |
Standby<5W, Full load<65W |
| Power Supply |
External power adapter, AC100~240V 50-60Hz 1.1A |
| Operation TEMP / Humidity |
-20~+55°C;5%~90% RH Non condensing |
| Storage TEMP / Humidity |
-40~+75°C;5%~95% RH Non condensing |
| Dimension (L*W*H) |
118*95*28mm |
| Net /Gross Weight |
<0.35kg / <1.0kg |
| Installation |
Desktop, wall-mounted |
| Lightning protection / protection level |
Lightning protection: 4KV 8/20us; Protection level: IP30 |
| Certification |
CCC, CE mark, commercial, CE/LVD EN60950, FCC Part 15 Class B RoHS |
