| Product Models |

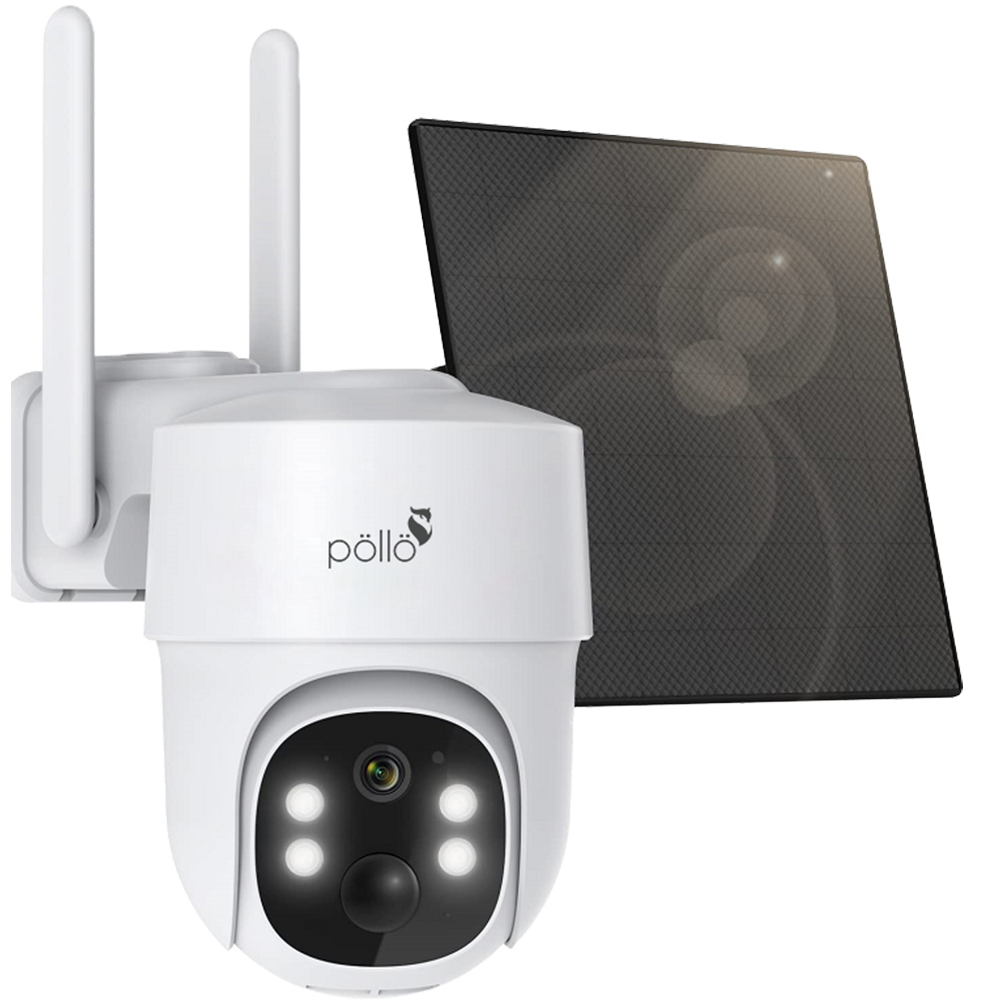

PLC-HS304-TB-4G |
| Form Factor |
PT Camera |
| Product Colour |
White /black (optional) |
| Antenna |
External antenna*2 |
| Materials |
ABS + PC + Anti UV + antifoaming V0 |
| White Balance |
Surface Finishing |
| waterproof level |
IP66 |
| Dimension(L*W*H) (mm) |
148*110*138mm |
| Hardware solution |
T31ZL+SC3338+4G LTE |
| PIR Sensor Detection range |
10 meters，110 degrees |
| PIR Sensor Sensitivity |
High/medium/low, default medium; |
| Lens |
3.6mm，F2.3 |
| Viewing angle |
D:92°*H:77°*V:42° |
| Image circle |
Ø6.9，1G3P |
| Dimension |
M12*22.9mm； |
| Camera Sensor type |
SC3338 |
| Camera Sensor Resolution |
2304*1296 Pixel |
| Night Vision |
10M distance（850nm） |
| IR-LED & White LED |
4pcs 3030(IR led + white led）*0.5W /10m（λ=850nm）White light colour temperature ≧ 6000K |
| Photosensitive |
Ø3，550nm |
| Photosensitive threshold |
Colour cut black ：0.8Lux；Black Cut color：8.5Lux |
| Working Indicator |
Red &blue dual colour*1 |
| Charge indicator |
Red & blue dual colour*1 |
| Mic |
Sensitivity：≥-32±3dBm，IP66 waterproof |
| Speaker |
Round built-in 8Ω/2W，IP66 waterproof |
| SIM Card |
Nano SIM Card |
| TF Card |
Max Support 128G |
| Button Switch |
Reset*1, Button Switch*1 |
| Horizontal angle |
336° |
| Vertical angle |
90° |
| Speed |
high/medium/low, default medium; |
| Battery Type |
2 pcs*21700 Lithium polymer battery |
| Battery Capacity |
8600mAh/3.7V |
| Standby life |
around 60 days； |
| working life |
around 45days（10 times per day wake up/15S） |
| IR Distance |
4G Standard |
| 4G Network type |
FDD/LTE-FDD |
| 4G Support frequency bands |
LTE-FDD：B1/B3/B5/B7/B8/B20 |
| 4G Version |
CN/AU/EU/JP/US/ASEAN(Optional) |
| 4G Maximum rate |
Maximum downlink rate：10Mbps Maximum uplink rate：5Mbps |
| Third Stream |
25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) |
| Power Supply |
DC 5V 1A（5W） |
| Max. Charge Current |
Max. 900mA |
| Standby Current |
around 5mA； |
| Operational power consumption |
200-300mA（Average 250mA) |
| Input port |
TF Card*1, Sim Card*1Type C*1,Mic*1,PIR*1, |
| Output port |
Speaker*1； |
| key type |
Tact Switch*2 |
| Indicator light |
working red & blue*1； Charging red & blue*1 |
| Audio Echo cancellation |
Support |
| Audio Two-Way Talk |
Support |
| Audio Start-up the bell |
Support |
| Audio Rest the bell |
Support |
| Audio Effective Volume |
Indication tone 75dB @ 0.5m |
| Audio Compression method |
AAC、G.726 |
| Video Format |
H.264+/H.265 |
| Video frame rate |
Day/Night： 15fps; |
| Resolution & frame rate |
3MP，SD/HD Optional default SD； |
| Video playback |
Event playback and cloud storage playback |
| IR turned ON: |
Enable night vision view, infrared, ICR automatic detection |
| White turned ON: |
Passive trigger: passive trigger at night, white light alarm mode; |
| System |
Linux |
| Android |
Android 4.3 above |
| IOS |
IOS 9.X above |
| Mobile App |
CloudEdge (ios10.0，android5.0 ); |
| Cloud platform |
Amazon |
| Language |
Chinese， English， French， German， Italian， Spanish， Japanese |
| Mobile APP |
Support configuration/real-time browsing/screenshot/playback/intercom/volume/video adjustment/record/photo album/format SD card |
| On line visitor |
Support simultaneous online (up to 5 people) |
| Human Body Filtering |
AI human shape detection |
| Detection Sensitivity |
high/medium/low, default medium; |
| Type of Alarm |
PIR trigger, low battery push, incoming call, message reminder, vibration reminder; |
| Sound the alarm |
3S-sounds alarm Day）--event trigger |
| Remote control and monitoring |
Support |
| Power failure memory |
Support |
| Pairing |
Scan QR Code |
| Live browsing |
Open the mobile APP, activate the camera, and the drawing time ≤ 4 seconds |
| Cloud Storage |
30 days free use |
| OTA upgrade |
Support |
| Alarm recording time |
15S/30S/60S optional in default 15S； |
| Operating |
Blue light Normally on, Red light extinguish |
| Sleeping |
Blue light extinguish, Red light extinguish |
| Dial-in blue light/red light |
Flicker quickly |
| Distribution network status blue light |
Normally on |
| Update Status blue light/red light |
Normally on |
| Disconnected status blue light/red light |
Extinguish |
| SIM card not detected blue light/red light |
Flash alternately for 0.5s |
| SIM card abnormality blue light/red light |
Flash alternately for 2s |
| Charging Status |
Red light Normally on |
| Full charge status |
Blue light extinguish |
| Battery-free USB power supply |
No support |
| Power key |
Long Press 3S for On or Off |
| Reset Key |
Long Press 5S for reset |
| Key time definition |
Set the Time |
| Reset the device |
Indicator status of normal connection: Red light always on -> Red light slow blinking > Red and Blue light alternately slow blinking > Red and Blue light simultaneously fast blinking > Blue light always on; The red light always on means it is connecting to the server; The red and blue lights flash alternately slowly, means the SIM card is detected; Red and blue lights flashing at the same time, means connecting to the operator's network; blue light always on, means connected network and server successfully. |
| Restart the device |
Red light always on>red light flash slowly>Red and blue lights alternately slow blinking>Red and blue lights flash rapidly simultaneously->blue light always on |
| Broken networke |
The device hibernates in low-power mode and tries to connect to the network again every hour. The indicator is off |
| Type-C USB Cable |
1m |
| Solar Panel |
5W，Type-C USB cable 3m |
| Screw Kit |
Package bag stainless steel screw*4+Expansion plug*4 |
| User Manual |
English |
| Package |
Pearl cotton invertor + cover plate, positioning sticker, colour box, carton; |
| Certification |
CE-RED, ROHS, UN38.3 |
| Temperature setting |
working： -20 ~ 60℃, Humidity <95% Storage：-30 ~ 70 ℃, Humidity <95% |
