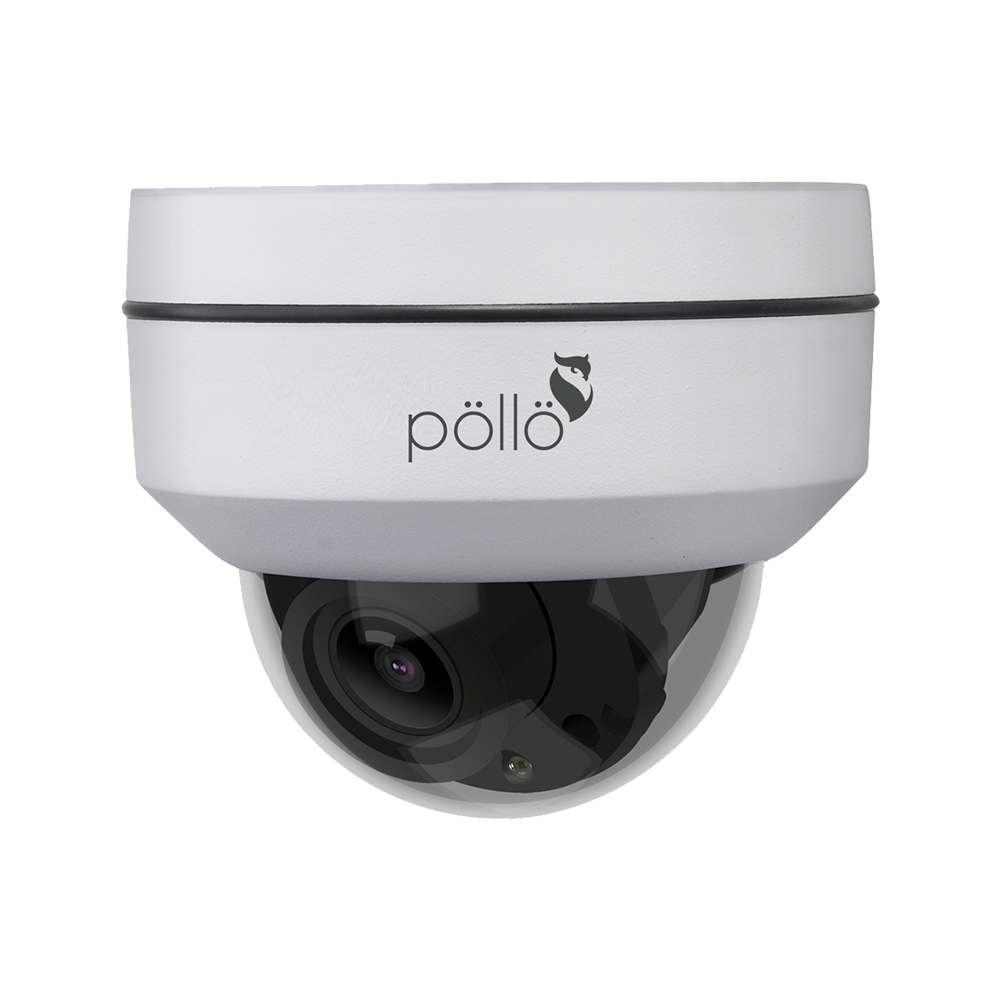

PLC-954-IR5 PR
4x Mini PTZ 5 MP
• 1/2.8″ SONY Starvis
• H.265
• 4X Optical Zoom
• 50m IR
• IP67
| Model | PLC-954-IR5/PR |
|---|---|
| Image Sensor | 1/2.8" SONY Starvis Back-illuminated CMOS Sensor |
| Horizontal Resolution | 5 MP |
| Compression | H.264/H.265 |
| S/N Ratio | >50 dB |
| Horizontal Rotation Speed | 25°/s |
| Horizontal Rotation Range | 0° - 350° |
| Tilt Rotation Speed | 20°/s |
| Tilt Rotation Range | 0° - 70° |
| Preset Points | 220 |
| Guard Tours | 3 Groups |
| Guard Points | Max. 16 Points |
| Focal Length | 2.8 mm - 12 mm |
| Focus Control | 4X Optical Zoom |
| Infrared LED | ￠35 x 4 pcs |
| IR Range | 50 m |
| Day-night Mode | Auto |
| Network Protocol | TCP/IP, HTTP, FTP, RTSP, UPnP, DNS, NTP, RTP, UDP, IGMP, P2P |
| ONVIF | Yes |
| Network Interface | Built-in RJ45 network Interface, Supports 10M/100M IP DATA |
| Stream Type | Main Stream/Sub-stream/MJPEG |
| Audio | Optional |
| Alarm | N/A |
| PoE | Optional |
| Ingress Protection | IP67 |
| Operating Temperature | Indoor: 0° - +40°, Outdoor: -15° - +60° |
| Operating Humidity | ≤90% Non-condensing |
| Power | DC 12V/2A, PoE Optional |
| Lightning Protection | Transient Voltage 3000 V |
| Dimension | 14 x 14 x 13 (cm) |
| Weight | 1.1 kgs |
| PLC-954-IR5 PR | Datasheet of PLC-954-IR5 PR |
|---|
