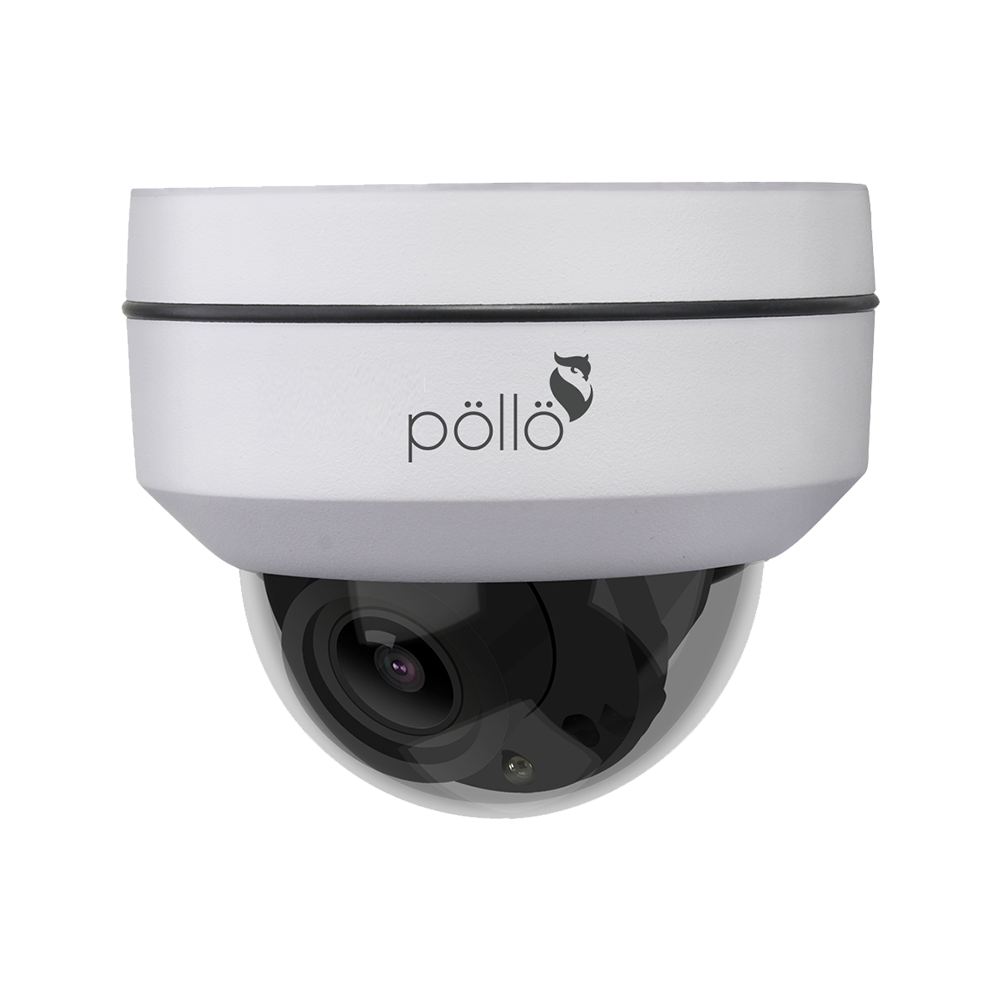

PLC-924-IR5 PR
4x Mini PTZ 2 MP
• 1/2.8″ SONY Starvis
• H.265
• 4X Optical Zoom
• 50m IR
• IP67
| Model | PLC-924-IR5 PR |
|---|---|
| Image Sensor | 1/2.9" SONY Low Illumination 2.1 MP CMOS Sensor |
| Horizontal Resolution | 2 MP |
| Compression | H.264/H.265 |
| S/N Ratio | >50 dB |
| Horizontal Rotation Speed | 25°/sv |
| Horizontal Rotation Range | 0° - 350° |
| Tilt Rotation Speed | 20°/s |
| Tilt Rotation Range | 0° - 70° |
| Preset Points | 220 |
| Guard Tours | 3 Groups |
| Guard Points | Max. 16 points |
| Focal Length | 2.8 mm - 12 mm |
| Focus Control | 4X Optical Zoom |
| Infrared LED | ￠35 x 4 pcs |
| IR Range | 50 m |
| Day-night mode | Auto |
| Network protocol | TCP/IP, HTTP, FTP, RTSP, UPnP, DNS, NTP, RTP, UDP, IGMP, P2P |
| ONVIF | Yes |
| Network interface | Built-in RJ45 Network Interface, Supports 10M/100M IP DATA |
| Stream type | Main Stream/Sub-stream/MJPEG |
| Audio | Optional |
| Alarm | N/A |
| PoE | Optional |
| Ingress Protection | IP67 |
| Operating Temperature | Indoor: 0° - +40°, Outdoor: -15° - +60° |
| Operating Humidity | ≤90%, Non-condensing |
| Power | DC 12 V/2 A, PoE Optional |
| Lightning Protection | Transient Voltage 3000 V |
| Dimension | 14 x 14 x 13 (cm) |
| Weight | 1.1 kg |
| PLC-924-IR5 PR | PLC-924-IR5 PR Data Sheet |
|---|
