| Model |

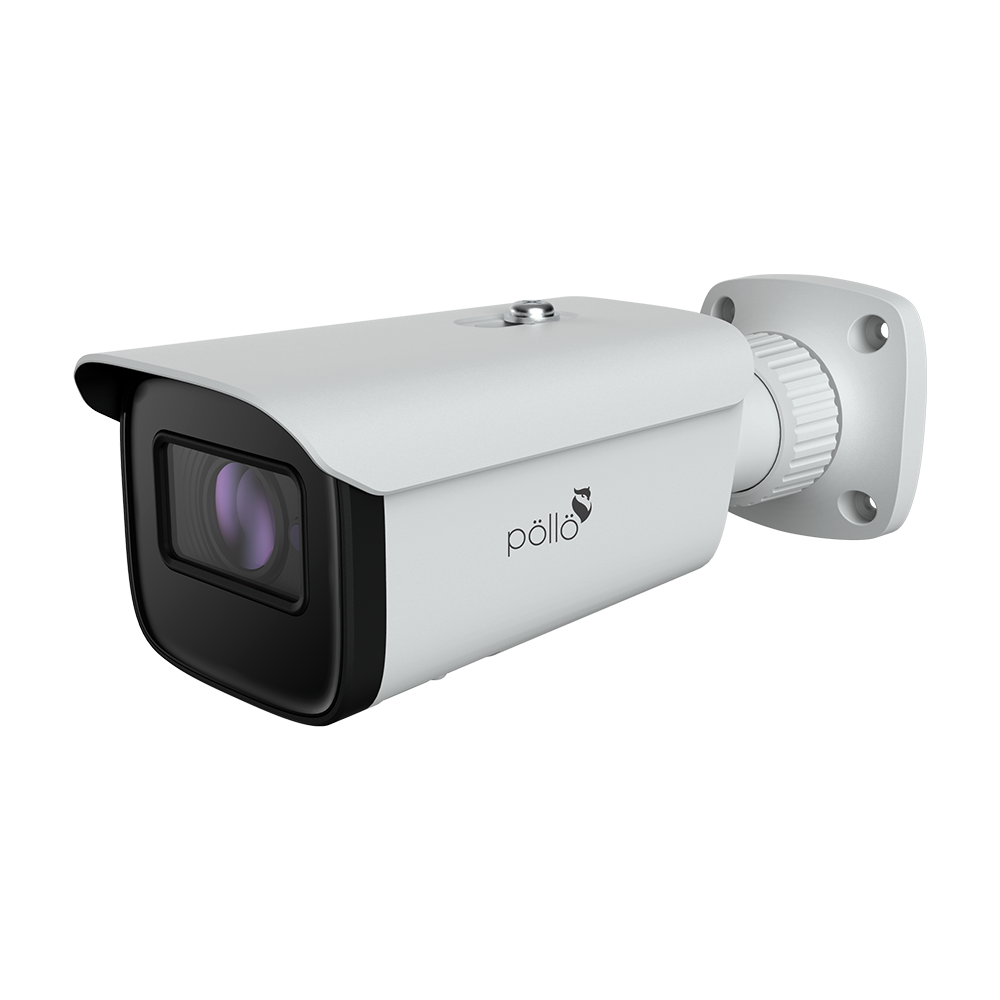

PLC-422M-MZ-IR5/PM |
| Image sensor |
1 / 2.8 "CMOS |
| Image Size |
1920 × 1080 |
| Electronic Shutter |
1 / 25 s ~ 1 / 100000 s |
| Iris Type |
DC Iris |
| Min. Illumination |
0.005 [email protected], AGC ON; 0 lux with IR 0.0028 [email protected], AGC ON; 0 lux with IR |
| Lens |
[email protected], H.FoV: 103°~ 32° ; V. FoV: 70.5°~18.3° ; D.Fov: 110.6°~36.4 |
| Focus |
Motorized |
| Lens Mount |
Φ14 |
| Day & Night |
ICR |
| BLC |
Yes |
| HLC |
Yes |
| Defog |
Yes |
| Digital NR |
3D DNR |
| Angle Adjustment |
Pan: 0°~360°; Tilt:0°~90°; Rotation: 0°~360° |
| Video Compression |
Main stream: Smart H.265 / H.265+ / H.265 / Smart H.264 / H.264+ / H.264 Sub stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG Third stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| H.264 Compression Standard |
Baseline Profile/Main Profile/High Profile |
| Resolution |
1080P (1920 × 1080), 720P (1280 × 720), D1, CIF, 480 × 240 |
| Main Stream |
60Hz:1080P/720P (1 ~ 30fps); 50Hz:1080P / 720P (1 ~ 25fps) |
| Sub Stream |
60Hz:720P/D1/CIF/480×240 (1~30fps); 50Hz:720P/D1/CIF/480×240 (1~25fps) |
| Third Stream |
60Hz:D1/CIF /480×240 (1~30fps); 50Hz:D1/CIF/480×240 (1~25fps) |
| Bit Rate |
64 Kbps ~ 6 Mbps |
| Bit Rate Type |
VBR / CBR |
| Audio Compression |
G711A / U |
| Image Settings |
ROI, Saturation, Brightness, Chroma, Contrast, Wide Dynamic, Sharpen, NR, etc. adjustable through client software or web browser |
| ROI |
Each ROI to be configured separately |
| Network |
RJ45 |
| Video Output |
No |
| Audio |
1CH audio input |
| Storage |
Built-in micro-SD card slot; up to 256GB |
| Reset |
Yes |
| Perimeter Protection |
Line crossing, region entrance/exiting/intrusion (human/motor vehicle/ non-motor vehicle classification) |
| Target Counting |
Line crossing human/motor vehicle/non-motor vehicle counting |
| Exception Detection |
Scene change, video blur and video colour cast detection |
| Face Detection |
Face detection and face capture |
| Remote Monitoring |
Web browsing, CMS remote control |
| Online Connection |
Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission |
| Network Protocol |
UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, SNMP, HTTP, HTTP POST, 802.1x, UPnP, HTTPs, QoS |
| Interface Protocol |
ONVIF |
| Storage |
Network remote storage; micro-SD card storage |
| Smart Alarm |
e Smart Alarm Motion detection, SD card error, SD card full |
| General Function |
Watermark, IP address filtering, video mask, heartbeat, illegal login lock |
| PoE |
Yes, IEEE802.3af |
| IR Distance |
30 ~ 50 m |
| Ingress Protection |
IP67 |
| Power Supply |
DC12V/PoE |
| Power Consumption |
< 9.5W |
| Operating Environment |
- 30 °C ~ 60°C (-22 °F~140°F) E42Humidity: less than 95 % non condensing |
| Dimensions (mm) |
217.7 × 80.5 × 80.5 |
| Weight (net) |
Approx. 0.67KG |
| Installation |
Ceiling mounting; Wall mounting |
| Certificate |
CE, FCC |
| Environmental Protection |
Directive EU RoHS, WEEE (2012/19/EU), directive 94/62/EC and REACH(EC1907/2006) |
